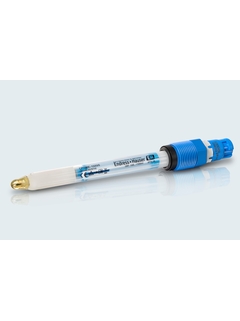

Memosens CPS96E - Digital, combined pH/ORP sensor for chemical processes, paper or paint production

Digital combined pH/ORP sensor Memosens CPS96E

Memosens 2.0 electrode for heavily polluted media in chemical processes, paper or paint production

CPS96E
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-
Memosens CPS96E - Digital, combined pH/ORP sensor for chemical processes, paper or paint production
  • F
  • L
  • E
  • X
©Endress+Hauser

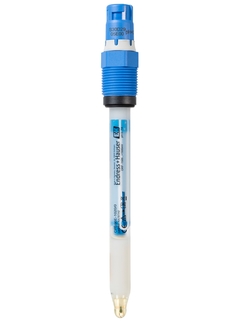

Memosens CPS96E - Glass electrode for simultaneous pH and ORP measurement in heavily polluted media
  • F
  • L
  • E
  • X
©Endress+Hauser

Specs at a glance

  • Measuring range

    ORP: –1 500 to 1 500 mV
    pH: 0 to 14

  • Process temperature

    0 to 110 °C (32 to 230 °F)

  • Process pressure

    0.8 to 14 bar (11.6 to 203 psi) absolute

Field of application

Memosens CPS96E is the specialist for media with a high content of suspended solids such as dispersions, precipitations or emulsions. The open aperture prevents fouling and ensures reliable simultaneous pH and ORP measurement. Thanks to Memosens 2.0 digital technology, CPS96E combines maximum process integrity with simple operation. It resists moisture, enables lab calibration and offers extended storage of calibration and process data providing the perfect basis for predictive maintenance.

  • Chemical processes

  • Pulp and paper industry

  • Contaminated media and suspended solids
    - Dispersions
    - Precipitations
    - Emulsions

With ATEX, IECEx, CSA C/US, NEPSI, Japan, INMETRO approvals for use in hazardous areas, zones 0, 1 and 2.

Benefits

  • Memosens 2.0 offers extended storage of calibration and process data, enabling better trend identification and offering a future-proof basis for predictive maintenance and enhanced IIoT services.

  • Simultaneous measurement of pH, ORP and rH values (in rH mode) provides a better process overview for tighter process control.

  • Additional platinum electrode enables constant monitoring of reference impedance and thus sensor quality.

  • Robust and resistant to poisoning thanks to stabilized gel and reference with ion trap.

  • Not affected by fluctuations in pressure and temperature: Open aperture prevents build-up of diffusion potential at the junction.

  • Maximum process safety through non-contact inductive signal transmission.

  • Minimized process downtime and extended sensor lifetime reduce operating costs.

Videos

  • The pH-value of a liquid can be determined using the potentiometric measurement principle. This video shows what it is about and how this measuring principle works.

  • Memosens converts the measured value to a digital signal and transfers it to the transmitter without a contacting connection. This video shows how Memosens optimizes process control and maintenance.
