Cerabar PMP43 – product picture

Cerabar PMP43 – hygienic pressure transmitter

Particularly compact, highly reliable and the perfect fit for demanding hygienic applications

PMP43
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-

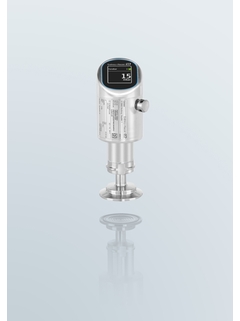

Cerabar PMP43, with display, 316L housing, Varivent
  • F
  • L
  • E
  • X
©Endress+Hauser

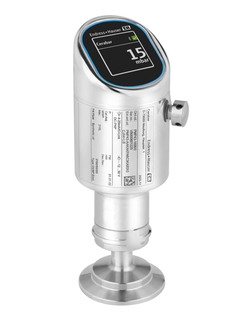

Cerabar PMP43, with display, 316L housing, clamp
  • F
  • L
  • E
  • X
©Endress+Hauser

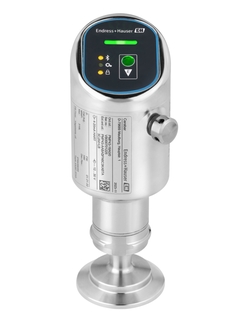

Cerabar PMP43, with LED, 316L housing, clamp
  • F
  • L
  • E
  • X
©Endress+Hauser

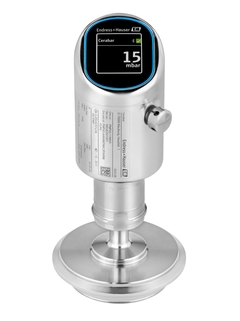

Cerabar PMP43, with display, 316L housing, clamp
  • F
  • L
  • E
  • X
©Endress+Hauser
IO-Link digital communication technology Heartbeat Technology

Specs at a glance

  • Accuracy

    Standard 0.1%
    Platinum 0.075%

  • Process temperature

    -40°C...+130°C (-40°F...+266°F)
    -20°C...+200°C (-4°F...+392°F)

  • Pressure measuring range

    400 mbar...100 bar
    (6 psi...1450 psi)

  • Material process membrane

    316L

  • Measuring cell

    400 mbar...100 bar
    (6 psi...1450 psi)

Field of application

The Cerabar PMP43 is a pressure transmitter and part of the Compact Line. The product line is especially developed for hygienic applications and combines a compact design with full performance. The proven technology is suitable for the measurement and monitoring of absolute and gauge pressure in liquids and gases. Thanks to the compact sensor design and small process connections, the device is flexible in scale and can be installed in tight space conditions.

Cerabar PMP43 is used for the measurement of pressure and level in pipelines as well as in process and storage tanks.

The Cerabar PMP43 is suitable for a wide range of hygienic applications:

  • Pressure monitoring of process pipes

  • Hydrostatic level measurement in process tanks/pressurized tanks

  • Pressure monitoring in narrow skids and modules

Benefits

  • Outstanding ease of use due to easy setup and operation with guided wizards and intuitive touch display

  • Improved process and product safety through configuration integrity - a checksum algorithm (CRC) ensures that safety relevant parameters remain unchanged

  • Increased productivity thanks to traceable and documented on-demand verification without process interruption and permanent monitoring of process anomalies or blocked impulse lines with Heartbeat Technology

  • 360-degree hygienic design and IP69 ingress protection class enable efficient cleaning and avoid contamination

  • Documented compliance through certified hygienic design as well as proven material conformity and traceability

Videos

  • Performance meets hygienic industry requirements: The Compact Line

  • IO-Link digital communication technology
    IO-Link communication

    IO-Link communication helps to digitalize your plant

  • Digital Communication & Integration

    Seamless integration of our field devices into the automation systems of many manufacturers. Field device tests in vendor-independent environment. Support of open standards.

  • Heartbeat Technology
    Smart instrumentation through Heartbeat Technology

    You want to increase plant performance and reduce costs? Our smart instrumentation portfolio with Heartbeat Technology offers in-depth device insight for more cost-efficiency and operational safety.

Lean selection

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

FLEX: Lean ©Endress+Hauser

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity

Variable

FLEX selections Technical excellence Simplicity
  • F
  • L
  • E
  • X

Fundamental selection

Meet your basic measurement needs

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Lean selection

Handle your core processes easily

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Extended selection

Optimize your processes with innovative technologies

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Xpert selection

Master your most challenging applications

Technical excellence
Simplicity

Variable
Loading alternative products

Predecessor

Could also interest you

  • eBrochure Compact Line eBrochure Compact Line

    Compact Line - Measuring devices for hygienic applications

    eBrochure Compact Line – No room for compromise in hygienic applications

  • Visual Compact Line Visual Compact Line

    Particularly small, exceptionally powerful: the Compact Line

    All the advantages of the Compact Line for hygienic applications in the Food & Beverage and Life Sciences industries.
