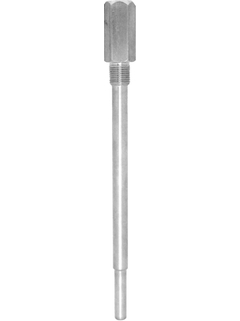

Product picture barstock thermowell TA562

TA562
Barstock thermowell

Made of drilled barstock material. Mainly used in heavy duty or general purpose applications.

TA562
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-
TA562 Barstock thermowell
  • F
  • L
  • E
  • X
©Endress+Hauser

Specs at a glance

  • Max. process pressure (static)

    500 bar (7252 psi)

  • Maximum standard immersion length

    900 mm (35,43")

  • Max. immersion length on request

    5.000 mm (196,85")

Field of application

Due to the challenging process conditions by heavy duty applications the load capacity of a thermowell must be calculated exactly. Dye penetration tests, ultrasound test, helium leakage test, pressure endurance test as well as various, non-destructive material tests prove the quality of materials and processing.

TA562 is designed for use with resistance and thermocouple thermometers mainly in heavy duty applications.

Benefits

  • The thermowell stem shape can be straight or reduced for fast response time

  • Extension, immersion length and reduced length as well as the bar dimensions can be chosen according to process requirements

  • Different grades of surface finishing are also available

  • The process connections are threaded: ½"NPT, ¾"NPT, G½" or M20x1.5

  • A wide choice of standard materials is available

  • Special versions can be manufactured according to specification
