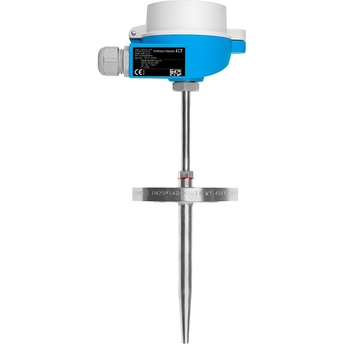

Product picture of thermocouple thermometer TC15

TC15
Modular TC thermometer

Comprehensive and common temperature measurement technology for almost all branches of industry

TC15
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-

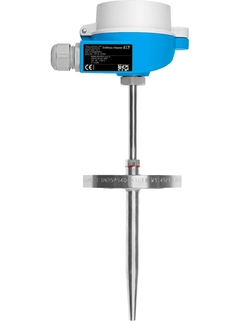

Thermocouple thermometer TC15
  • F
  • L
  • E
  • X
©Endress+Hauser
Thermocouple thermometer TC15
  • F
  • L
  • E
  • X
©Endress+Hauser

Specs at a glance

  • Accuracy

    class 1 acc. to IEC 60584

  • Response time

    depending on configuration

  • Max. process pressure (static)

    at 20 °C: 400 bar (5.802 psi)

  • Operating temperature range

    Type K:
    max. 1.100 °C
    (max. 2.012 °F)
    Type J:
    max. 750 °C
    (max. 1.382 °F)

  • Max. immersion length on request

    up to 30.000,00 mm (1.181,10'')

Field of application

The high modular and robust thermometer finds its use in several applications in almost all industries. An optional head transmitter, with all common communication protocols, makes the device ready to use with enhanced measurement accuracy and reliability compared to directly wired sensors. A variety of process connections, dimensions and materials offer flexible application possibilities.

  • Universal range of application

  • Particularly suitable for steam and gas applications with high process pressures and temperatures

  • Measuring range: –40 to 1100 °C (–40 to 2012 °F)

  • Static pressure range up to 400 bar (5800 psi)

  • Degree of protection: up to IP68

Benefits

  • High degree of flexibility thanks to modular design with standard terminal heads as per DIN EN 50446 and customer-specific immersion lengths

  • High degree of insert compatibility and design as per DIN 43772

  • Extension neck to protect the head transmitter from overheating

  • Fast response time with reduced/tapered tip form

  • Types of protection for use in hazardous locations: Intrinsic safety (Ex i.a.), non-sparking (Ex nA)

  • Head transmitter with easy selection: Analog output 4 to 20 mA, HART®, PROFIBUS® PA or FOUNDATION Fieldbus™
